Royal Windoor's combine timeless design with modern performance, making them an ideal choice for both traditional and contemporary homes. These swing doors are engineered for strength and energy efficiency, offering narrow stiles and large glass panels to maximize natural light and create a seamless indoor-outdoor connection. Their durable aluminum frame ensures long-lasting performance with minimal maintenance, while various configuration options support customized aesthetics and functionality. Designed for flexibility and elegance, these doors elevate the architectural appeal of any space.
Key Features:
- Thermally controlled aluminum frame for energy efficiency and all-weather performance.
- Narrow stile and rail design enhances views with more glass and less frame.
- Dual or single door operation with inswing or outswing options
- Multiple hardware finishes and configurations to match design preferences.
- Smooth and secure multi-point locking system for added security and ease of use.
Profile(s) Used With this Product:
Insulated Opening System

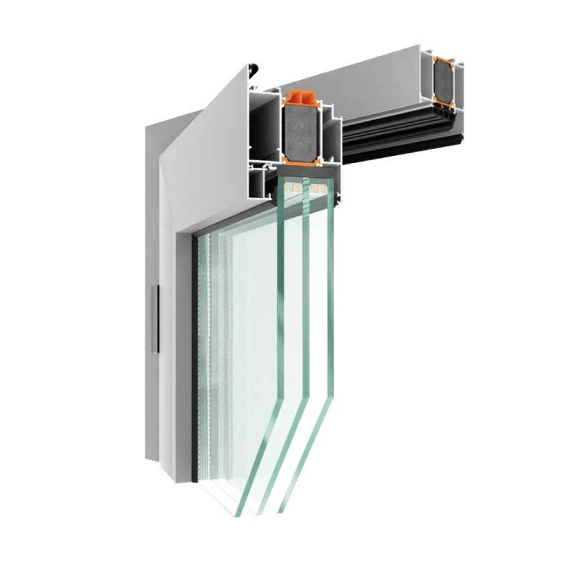

The LR 5100 Opening System is a high-performance aluminum insulated profile designed for modern architectural needs. It combines sleek aesthetics with excellent thermal insulation, making it ideal for energy-efficient buildings. With durable construction and versatile opening options, the LR 5100 offers both functionality and contemporary style, suitable for residential and commercial applications.
LR5100
Technical Specifications
Sash Width | 72 mm |
Frame Sash Length | 90 mm |
Frame Width | 72 mm |
Glass Thickness | 18-24 mm |
Insulation Bridge | 20 mm |
Max. Sash Load Capacity | 120 - 200 Kg. |
- Characteristics that reflect the identity of the product
- Optimum solutions with wide profile options.
- Sealing and sound insulation as a result of the combination of the case middle gasket and the radius thermal insulation barrier.
- Specially designed adjustable locking counterparts.
- Possibility of better thermal insulation values with different combinations.
- Possibility of applying triple glazing and blind glass.
- Unique concepts and designs utilizing powder coating and wood effects.
- Modern and aesthetic appearance of metal with silver bronze colored anodized surfaces.
- Unique concepts and designs utilizing powder coating and wood effects.
- Modern and aesthetic appearance of metal with silver bronze colored anodized surfaces.
Insulated Opening System
GLR53 Grande

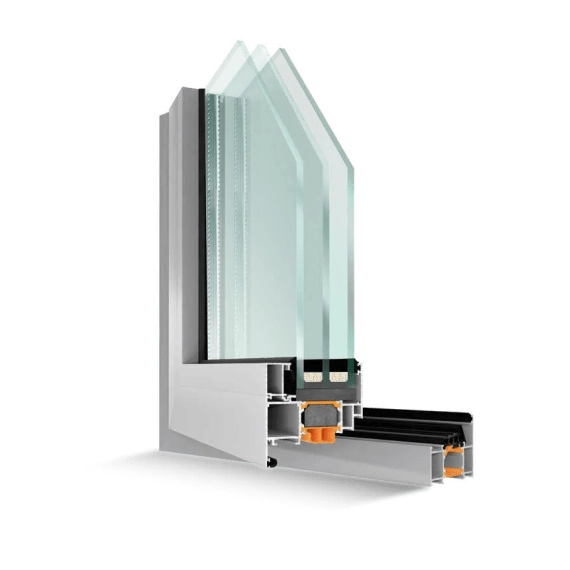

The GLR53 Grande Opening System is a high-performance aluminum insulated profile designed for modern architectural needs. It combines sleek aesthetics with excellent thermal insulation, making it ideal for energy-efficient buildings. With durable construction and versatile opening options, the LR 5100 offers both functionality and contemporary style, suitable for residential and commercial applications.
- Characteristics that reflect the identity of the product
- Minimum heat loss thanks to the foam placed inside the profile
- Possibility of better thermal insulation values with different combinations.
- High thermally and sound insulation.
- Unique concepts and designs utilizing powder coating and wood effects.
- Possibility of applying triple glazing and blind glass.
Technical Specifications
Sash Width | 88 mm |
Frame Sash Length (Min.) | 113.0 mm |
Frame Width | 76 mm |
Glass Thickness | 40-62 mm |
Insulation Bridge | 34 mm |
Max. Sash Load Capacity | 120-200 Kg. |
