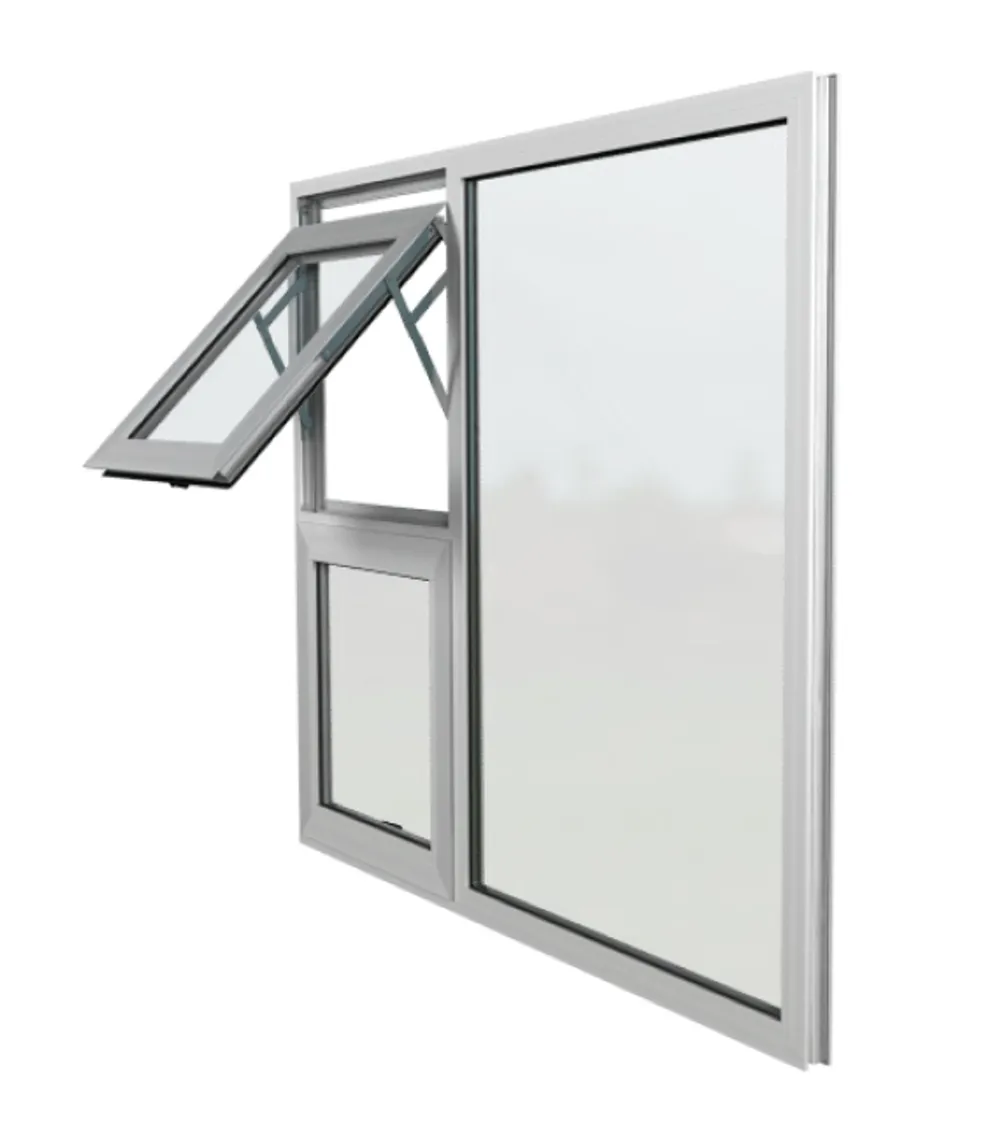

Aluminum casement windows are hinged windows that open outward like a door, typically operated with a crank or handle. They are attached to the frame by one or more side hinges, allowing the window to swing open fully for maximum ventilation and easy cleaning.
Key Features:
- Excellent ventilation and unobstructed views
- Tight seal when closed, improving energy efficiency and sound insulation
- Durable aluminum frame, resistant to rust, warping, and weather
Aluminum casement windows are a popular choice for modern and minimalist designs due to their sleek profiles, strength, and low maintenance.
Profile(s) Used With this Product:
Insulated Opening System

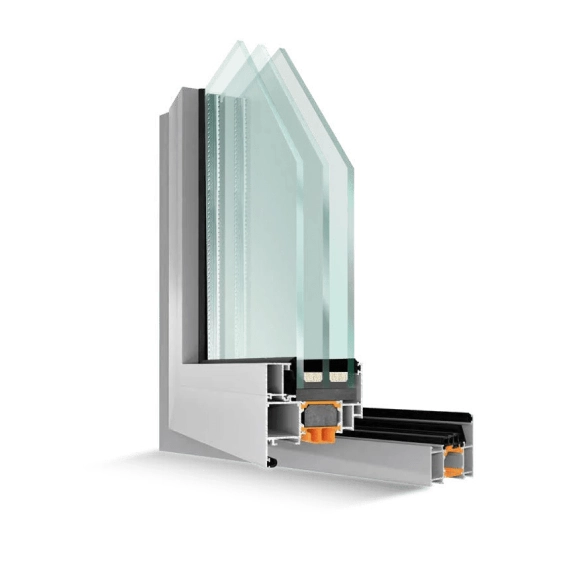

The LR 5100 Opening System by Royal Windoor is a high-performance aluminum insulated profile designed for modern architectural needs. It combines sleek aesthetics with excellent thermal insulation, making it ideal for energy-efficient buildings. With durable construction and versatile opening options, the LR 5100 offers both functionality and contemporary style, suitable for residential and commercial applications.
LR5100
Technical Specifications
Sash Width | 72 mm |
Frame Sash Length | 90 mm |
Frame Width | 72 mm |
Glass Thickness | 18-24 mm |
Insulation Bridge | 20 mm |
Max. Sash Load Capacity | 120 - 200 Kg. |
- Characteristics that reflect the identity of the product
- Optimum solutions with wide profile options.
- Sealing and sound insulation as a result of the combination of the case middle gasket and the radius thermal insulation barrier.
- Specially designed adjustable locking counterparts.
- Possibility of better thermal insulation values with different combinations.
- Possibility of applying triple glazing and blind glass.
- Unique concepts and designs utilizing powder coating and wood effects.
- Modern and aesthetic appearance of metal with silver bronze colored anodized surfaces.
- Unique concepts and designs utilizing powder coating and wood effects.
- Modern and aesthetic appearance of metal with silver bronze colored anodized surfaces.
Insulated Opening System
GLR53 Grande
The GLR53 Grande Opening System by Royal Windoor is a high-performance aluminum insulated profile designed for modern architectural needs. It combines sleek aesthetics with excellent thermal insulation, making it ideal for energy-efficient buildings. With durable construction and versatile opening options, the LR 5100 offers both functionality and contemporary style, suitable for residential and commercial applications.
- Characteristics that reflect the identity of the product
- Minimum heat loss thanks to the foam placed inside the profile
- Possibility of better thermal insulation values with different combinations.
- High thermally and sound insulation.
- Unique concepts and designs utilizing powder coating and wood effects.
- Possibility of applying triple glazing and blind glass.
Technical Specifications
Sash Width | 88 mm |
Frame Sash Length (Min.) | 113.0 mm |
Frame Width | 76 mm |
Glass Thickness | 40-62 mm |
Insulation Bridge | 34 mm |
Max. Sash Load Capacity | 120-200 Kg. |
